鋼結構螺栓是一種高強度的螺栓，也是標準件的一種。緊固性能比較好，用于鋼結構上，工程上，使緊固作用的。
Steel structure bolt is a kind of high-strength bolt, which is also a kind of standard parts. The fastening performance is relatively good. It is used in steel structure and engineering to make the fastening effect.
鋼結構螺栓分為扭剪型高強螺栓和大六角高強螺栓,大六角高強螺栓屬于普通螺絲的高強度級,而扭剪型高強螺栓則是大六角高強螺栓的改進型,為了更好施工.
Steel structure bolts are divided into torsional shear high-strength bolts and large hexagon high-strength bolts. Large hexagon high-strength bolts belong to the high-strength grade of ordinary screws, while torsional shear high-strength bolts are the improved type of large hexagon high-strength bolts for better construction
鋼結構螺栓的施工需要先初緊后終緊,初緊鋼結構螺栓需用沖擊型電動扳手或扭矩可調電動扳手;而終緊鋼結構螺栓有嚴格的要求,終緊扭剪型鋼結構螺栓需要用扭剪型電動扳手,終緊扭矩型鋼結構螺栓需要用扭矩型電動扳手.大六角鋼結構螺栓 由一個螺栓，一個螺母，兩個墊圈組成
The construction of steel structure bolts requires initial tightening before final tightening. The initial tightening of steel structure bolts requires impact electric wrench or torque adjustable electric wrench; The final tightening of steel structure bolts has strict requirements. The final tightening of torsion shear steel structure bolts needs to use torsion shear electric wrench, and the final tightening of torque steel structure bolts needs to use torque electric wrench The large hexagonal structural bolt is composed of one bolt, one nut and two washers
當螺母的端面與工件端面接觸后，阻力矩急劇上升，轉運的螺旋槽使?jié)L珠帶著主動沖擊塊克服摩擦力和工作彈簧的壓力向后移動，使主動沖擊塊與從動沖擊塊互相嚙合的牙脫離嚙合。此時，從動沖擊塊不移動，而主動部擊塊繼續向后移動。在轉過從動沖擊塊的牙后，由于工作彈簧的作用使主動沖擊塊瞬時前移，并沿螺旋槽產生一個角加速度，主動沖擊塊撞擊從動部擊塊，兩牙產生碰撞。然后螺旋槽又使?jié)L珠和主動沖擊塊后移，脫離嚙合。這樣周而復始產生一次又一次的碰撞，獲得所需的沖擊力矩，使螺母緊固。
When the end face of the nut is in contact with the end face of the workpiece, the resistance moment rises sharply, and the transferred spiral groove makes the ball move backward with the active impact block to overcome the friction and the pressure of the working spring, so that the teeth meshed between the active impact block and the driven impact block are disengaged. At this time, the driven impact block does not move, but the driving part impact block continues to move backward. After turning the teeth of the driven impact block, the active impact block moves forward instantaneously due to the action of the working spring, and an angular acceleration is generated along the spiral groove. The active impact block strikes the driven impact block, and the two teeth collide. Then the spiral groove moves the ball and the active impact block backward and out of engagement. In this way, collisions occur again and again to obtain the required impact torque and tighten the nut.
如將電源開關轉到反轉位置即可擰出螺母。雙重絕緣單相串勵電動板手在操作手柄上裝有正反開關旋鈕“R”和“L”。當旋鈕到R時啟動開關可以將螺栓擰緊，當旋鈕到L時啟動開關可以將螺栓松動。
If the power switch is turned to the reverse position, the nut can be screwed out. The double insulated single-phase series excitation electric wrench is equipped with positive and negative switch knobs "R" and "L" on the operating handle. When the knob is turned to R, the start switch can tighten the bolt, and when the knob is turned to L, the start switch can loosen the bolt.

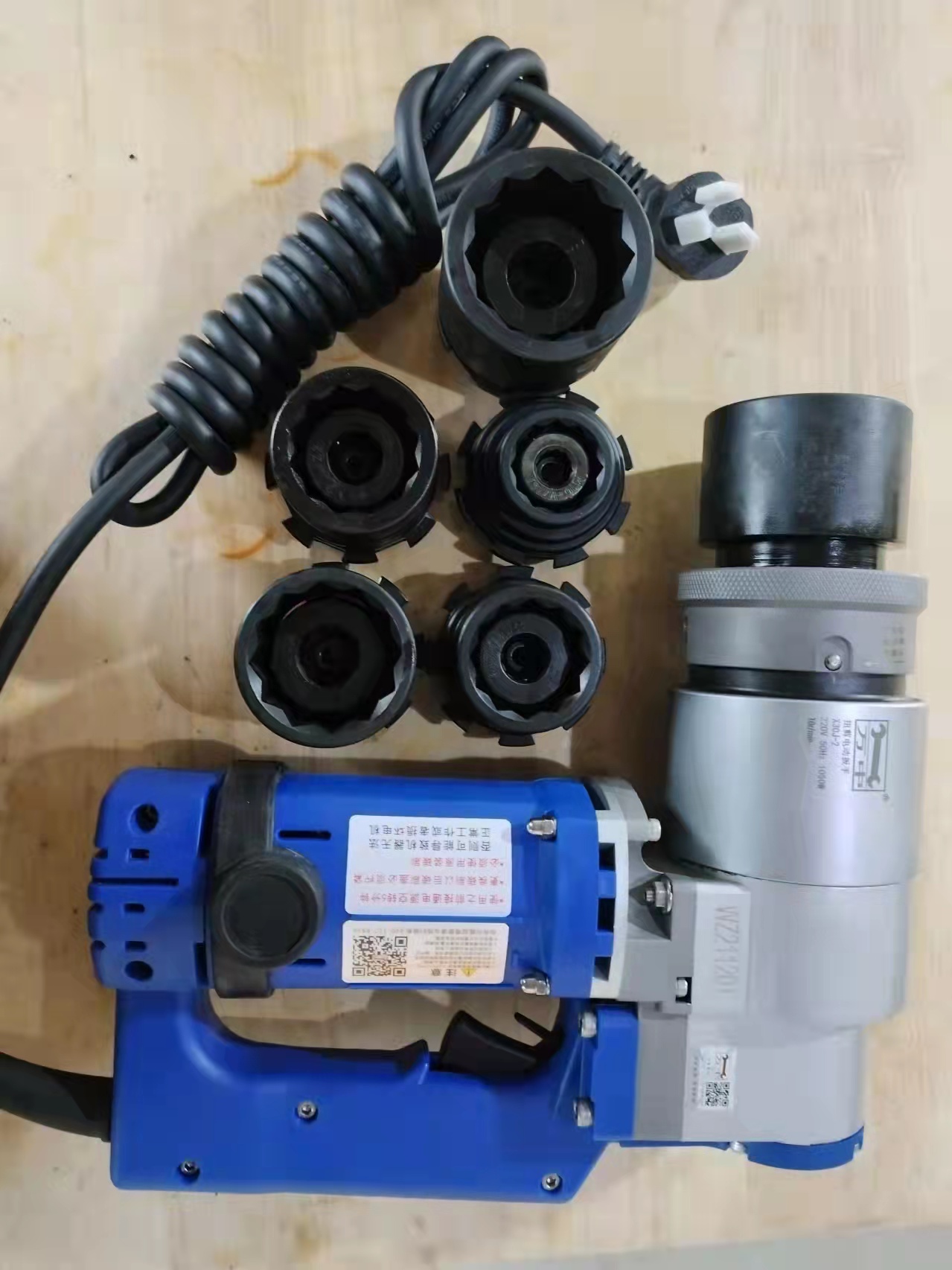

The above is the detailed introduction of torsion shear electric wrench. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service http://www.ykmzc.com
